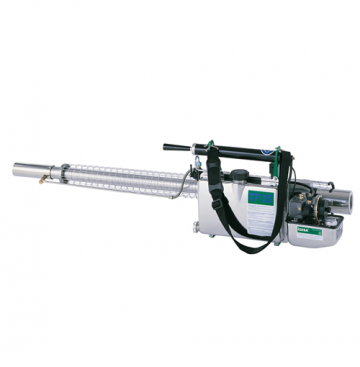

TF-35
Product Category: Foggers
Origin: Made in Germany
Product Usage: For Fumigation Purpose
Key Properties / USP's:
- 1) Petrol tank made from stainless steel
- 2) Fog tube made from stainless steel
- 3) Formulation tank made from stainless steel
- 4) Air pump made from stainless steel
- 5) Reliable ignition system without spark plug
- 6) All other parts getting in contact with the chemicals are made from Brass, Viton or Teflon.
- 7) Emergency cut-off device for solution available upon request.
Technical Specification:
| Weight in kg, empty but ready for use | 7.9 |
| Dimensions LxWxH in cm | 137,5 x 27 x 34 |
| Solution tank capacity in liters (standard) | 5.7 |
| Solution tank capacity in liters (optional) | 10 |
| Fuel consumption, approx., in / h | 2 |
| Performance of combustion chamber in KW/HP | 18.7/25.4 |
| Maximum flow rate, approx. in / h | 42 |
| Effective horizontal reach (water-based) | 40 m |
| Effective horizontal reach (oil-based) | > 100 m |
| Power supply | 4 x 1.5 V LR20 or LR6 option |
Coverage Area:
Considering the maximum flow rate, at a flow rate of 1 liter/2,500 m³, an operator can treat up to 105,000 m³/h or 3,708,000 ft³/h.
Registration Details: ISO 9001 Certified
SKU: Shoulder Mount
